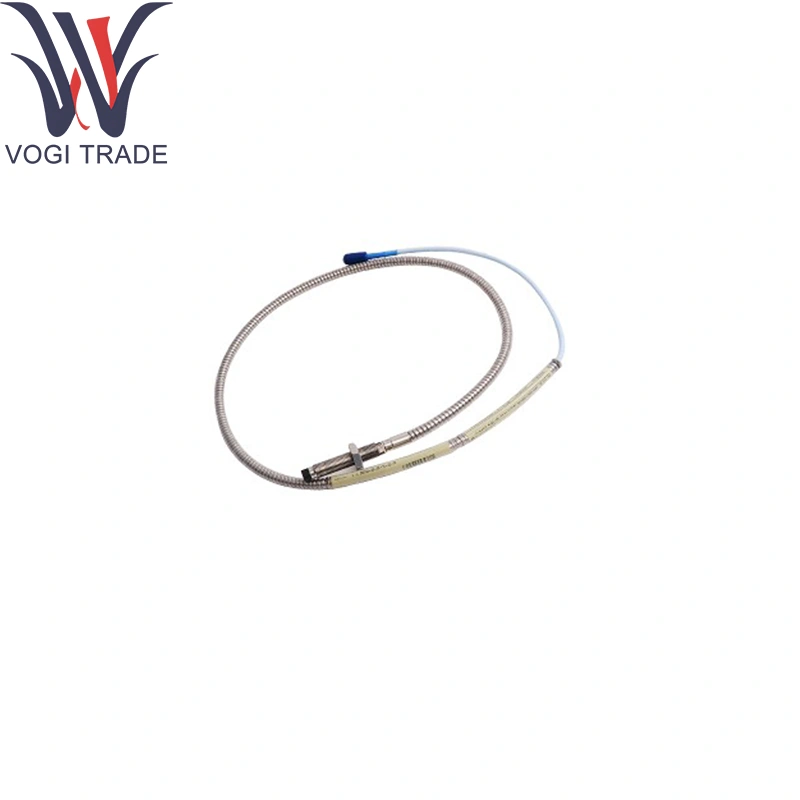

Brand: Belnty NevadaDescrizione: 330103-00-15-10-02-00CONDIZIONE: nuovo di zeccaCertificato: lettera di garanzia del rapporto di test COOGaranzia: 1 annoInventario QTY: 13Termina di pagamento: t/tPorta di spedizione: ShenzhenBelcente Nevada 330103-00-15-10-02-00 utilizzato per il monitoraggio di imposizione e vibrazione senza contatto nei macchinari in cui lo spazio è limitato e non è richiesto il cavo corazzato, come interni di controllo pulito e protetto o panche di test.
|
Manufacture |
Bently Nevada |
|
Model Number |
330103-00-15-10-02-00 |
|
Ordering Number |
330103-00-15-10-02-00 |
|
Catalog |
3300XL |
|
Description |
8 Mm Proximity Probes Without Armour |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
24*2.4*10 (CM) |
|
Weight |
0.1 kg |
Ordering Information
3300 XL 8 mm Proximity Probes:
330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor(2)
330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor(2)
Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.
B: Overall Case Length Option
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in.
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
30 3.0 meters (9.8 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
Technical Parameters
Linear Range: 1.0 mm (40 mils) full scale for Bently Nevada 330103-00-15-10-02-00
Sensitivity: 50 mV/µm (125 mV/mil) ± 5% @ –23 V DC excitation
Output Span: –2 V to –12 V over linear range
Linearity: ± 1 % of full scale
Frequency Response: DC to 10 kHz (–3 dB)
Operating Temperature: –35 °C to +125 °C (probe); –20 °C to +80 °C (PVC cable) in Bently Nevada 330103-00-15-10-02-00
Pressure Rating: Not pressure-sealed (requires bulkhead/thermowell for pressurized apps)
Environmental Protection: IP65 when mated; stainless-steel body, ceramic tip
Product function
Converts air-gap variations using Bently Nevada 330103-00-15-10-02-00 into proportional AC voltage. The unarmored cable version delivers high-fidelity signals to Proximitor® modules in protected environments.
Application Areas
Test Benches & Labs: Compact setups with probes mounted inside cabinets using Bently Nevada 330103-00-15-10-02-00
Clean-Area Machinery: Pumps/motors with minimal abrasion risk
OEM Equipment: Embedded instrumentation in skid packages with Bently Nevada 330103-00-15-10-02-00
R&D Prototypes: Temporary installations requiring flexible wiring
Control-Room Simulations: HIL testing of monitoring systems via Bently Nevada 330103-00-15-10-02-00
